Home > Product Range > Black Ductile Iron Pipe Fittings

D.I.
Threaded
Fittings

BLACK DUCTILE IRON PIPE FITTINGS

(AS PER ASTM A 536 WITH BRITISH TAPER THREAD)




Our ductile iron pipe fittings are manufactured as per international standards and are suitable for industrial and commercial applications. We are leading ductile iron pipe fittings manufacturers in India offering high-quality black ductile iron pipe fittings with UL/FM approval. Our fittings are widely used in fire protection, water supply, and industrial piping systems for durability and high performance.

Our ductile iron pipe fittings offer better quality, durability, and cost-effectiveness compared to forged fittings.

Feature

Ductile Iron Fittings

Forged Fittings

Remarks

Internationally Used in Fire Fighting

Yes

No

Internationally Chosen Europe as well as USA

International Approval

Yes, UL & FM

No Approval

FM Approval is basic criterion for Fire Fighting Fittings

Ease of Use & Handling

High, Light Weight

Low, Extra Heavy

Installation Friendly

Threaded

Yes

Yes

Equable

Test Pressure

2000 psi (500 psi working pressure)

1000 psi

Higher pressure rating

Cost / Price

Low, 10-15% cheaper
than Forged Fittings

Very High

Do, we need say more.

List of few of our clientele in India & abroad will help you identify with our credibility and product quality. We are on the approved vendor list of following Natural Gas Distribution companies: -

To add on to our credibility, we are also on the approved vendor list of DMRC, i.e. Delhi Metro Rail Corporation, DGS&D, CIDCO Maharashtra and Bhilai Steel Plant, Bhilai.



We are a leading ductile iron pipe fittings manufacturer supplying high-quality ductile iron pipe fittings to major clients across India and international markets.

Also we have supplied Malleable Cast Iron Galvanized Pipe Fittings for Fire Fighting Systems to following sub contractors of DMRC: -

  • Larsen & Toubro Ltd. (Engineering, Construction & Contracts Division), New Delhi

  • Kumagai Skanska HCC Itochu (KSHI) Group (Joint Venture)

  • Schwing Setter India Pvt. Ltd., Sriperunpudur (Tamilnadu)

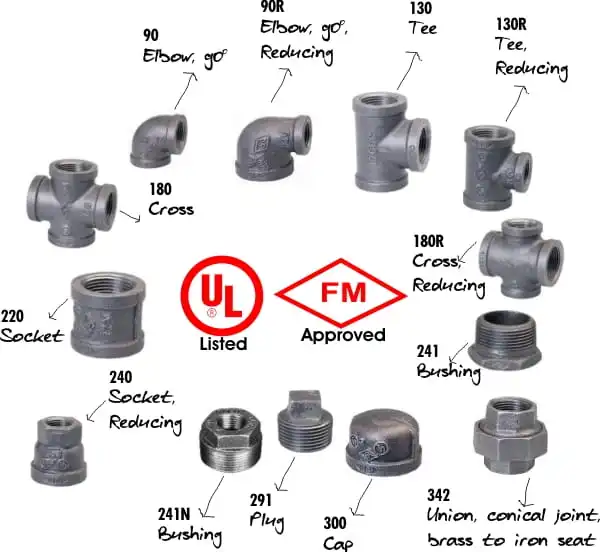

Black ductile iron pipe fittings ASTM standard – elbows, tees, reducers, sockets and bushings
90
Elbow, 900
Size Inch 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3”
mm 15 20 25 32 40 50 65 80
Dimensions A 28.5 33.3 38.1 44.5 49.3 57.2 68.6 78.2
90R
Size Inch 3/4"x1/2” 1”x1/2” 1”x3/4” 1-1/4”x1/2” 1-1/4”x3/4” 1-1/4”x1” 1-1/2”x1/2” 1-1/2”x3/4” 1-1/2”x1” 1-1/2”x1-1/4” 2”x1/2” 2”x3/4” 2”x1”
mm 20x15 25x15 25x20 32x15 32x20 32x25 40x15 40x20 40x25 40x32 50x15 50x20 50x25
Dimensions A 30.5 32 34.8 34 36.8 40.1 35.8 38.6 41.9 46.2 37.9 40.6 43.9
  B 31 35.5 36.8 38.9 41.2 42.4 42.2 44.5 45.7 47.8 47.8 50 51.3
130
Size Inch 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2”
mm 15 20 25 32 40 50 65
Dimensions A 28.5 33.3 38.1 44.5 49.3 57.2 68.6
130R
Size Inch 3/4"x1/2” 1”x1/2” 1”x3/4” 1-1/4”x1/2” 1-1/4”x3/4” 1-1/4”x1” 1-1/2”x1/2” 1-1/2”x3/4” 1-1/2”x1” 1-1/2”x1-1/4” 2”x1/2” 2”x3/4” 2”x1” 2”x1-1/4” 2”x1-1/2”
mm 20x15 25x15 25x20 32x15 32x20 32x25 40x15 40x20 40x25 40x32 50x15 50x20 50x25 50x32 50x40
Dimensions A 30.5 32 34.8 34 36.8 40.1 35.8 38.6 41.9 46.2 37.9 40.6 43.9 48.3 51.3
  B 31 35.5 36.8 38.9 41.2 42.4 42.2 44.5 45.7 47.8 47.8 50 51.3 53.3 54.9
180
Size Inch 1” 1-1/4” 1-1/2” 2”
mm 25 32 40 50
Dimensions A 38.1 44.5 49.3 57.2
(mm)
180R
Size Inch 1-1/4”x1” 1-1/2”x1”
mm 32x25 40x25
Dimensions A 40.1 41.9
    42.4 45.7
220
Size Inch 1/2” 3/4” 1” 1-1/4” 1-1/2” 2”
mm 15 20 25 32 40 50
Dimensions A 34 38.6 42.4 48.4 54.6 64.3
240
Size Inch 1”x1/2” 1”x3/4” 1-1/4”x3/4” 1-1/4”x1” 1-1/2”x1” 1-1/2”x1-1/4” 2”x1” 2”x1-1/4” 2”x1-1/2”
mm 25x15 25x20 32x20 32x25 40x25 40x32 50x25 50x32 50x40
Dimensions A 42.9 42.9 53 52.3 58.7 58.7 71.4 71.4 71.4
241
Size Inch 1”x1/2” 1”x3/4” 1-1/4”x1” 1-1/2”x1” 1-1/2”x1-1/4” 2”x1-1/2”
mm 25x15 25x20 32x25 40x25 40x32 50x40
Dimensions A 25.4 25.4 27.4 29 29 31
241N
Size Inch 2”x1”
mm 50x25
Dimensions A 32.8
291
Size Inch 1/2” 3/4” 1” 1-1/4” 1-1/2” 2”
mm 15 20 25 32 40 50
Dimensions A 23.9 27.2 31.8 34.5 36.8 39.6
300
Size Inch 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2”
mm 15 20 25 32 40 50 65
Dimensions A 22.1 24.6 39.5 32.5 33.8 36.8 43.2
342
Size Inch 1” 1-1/4” 1-1/2” 2”
mm 25 32 40 50
Dimensions A 52.3 57.4 61.2 69.9

In the light of the above information, we are sure you will be interested in our pipe fittings and valves for your current & upcoming Projects.
